| DR LIFTING SYSTEM |
| |
| |

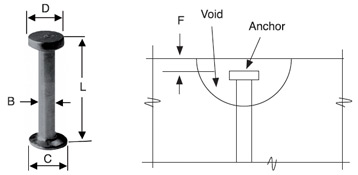

DR ANCHORS
Economical and effective method for backstripping or face lifting in tension. The system Code is stamped on the head of each anchor to match with the correct lifting unit. Stocked in mill finish Hot dip galvanized; available on request. |
|
 |
|
|
|
1.3-Ton |
|
| DRA01.3055 |
1.3 |
55 |
0.97 |
10 |
25 |
19 |
10 |
| DRA01.3065 |
1.3 |
65 |
1.30 |
10 |
25 |
19 |
10 |
| DRA01.3085 |
1.3 |
85 |
1.30 |
10 |
25 |
19 |
10 |
| DRA01.3120 |
1.3 |
119 |
1.30 |
10 |
25 |
19 |
10 |
| DRA01.3200 |
1.3 |
203 |
1.30 |
10 |
25 |
19 |
10 |
|
|
2.5-Ton |
|
| DRA02.5055 |
2.5 |
55 |
1.06 |
14 |
35 |
26 |
11 |
| DRA02.5070 |
2.5 |
70 |
2.0 |
14 |
35 |
26 |
11 |
| DRA02.5085 |
2.5 |
85 |
2.24 |
14 |
35 |
26 |
11 |
| DRA02.5120 |
2.5 |
119 |
2.50 |
14 |
35 |
26 |
11 |
| DRA02.5140 |
2.5 |
140 |
2.50 |
14 |
35 |
26 |
11 |
| DRA02.5170 |
2.5 |
170 |
2.50 |
14 |
35 |
26 |
11 |
| DRA02.5280 |
2.5 |
279 |
2.50 |
14 |
35 |
26 |
11 |
|
|
5-Ton |
|
| DRA05075 |
5 |
76 |
2.3 |
20 |
50 |
36 |
15 |
| DRA05095 |
5 |
95 |
2.95 |
20 |
50 |
36 |
15 |
| DRA05110 |
5 |
110 |
4.0 |
20 |
50 |
36 |
15 |
| DRA05120 |
5 |
119 |
4.44 |
20 |
50 |
36 |
15 |
| DRA05140 |
5 |
140 |
5 |
20 |
50 |
36 |
15 |
| DRA05160 |
5 |
160 |
5 |
20 |
50 |
36 |
15 |
| DRA05180 |
5 |
179 |
5 |
20 |
50 |
36 |
15 |
| DRA05240 |
5 |
240 |
5 |
20 |
50 |
36 |
15 |
| DRA05340 |
5 |
340 |
5 |
20 |
50 |
36 |
15 |
|
|
7.5-Ton |
|
| DRA07.5120 |
7.5 |
120 |
4.40 |
24 |
60 |
47 |
15 |
| DRA07.5165 |
7.5 |
165 |
7.5 |
24 |
60 |
47 |
15 |
| DRA07.5300 |
7.5 |
300 |
7.5 |
24 |
60 |
47 |
15 |
| DRA07.5540 |
7.5 |
540 |
7.5 |
24 |
60 |
47 |
15 |
| DRA07.5600 |
7.5 |
600 |
7.5 |
24 |
60 |
47 |
15 |
| DRA07.5680 |
7.5 |
680 |
7.5 |
24 |
60 |
47 |
15 |
| |
|
10-Ton |
|
| DRA10120 |
10 |
119 |
4.40 |
28 |
70 |
47 |
15 |
| DR010135 |
10 |
135 |
6.41 |
28 |
70 |
47 |
15 |
| DRA10150 |
10 |
150 |
7.61 |
28 |
70 |
47 |
15 |
| DRA10170 |
10 |
170 |
8.35 |
28 |
70 |
47 |
15 |
| DRA10220 |
10 |
225 |
10 |
28 |
70 |
47 |
15 |
| DRA10250 |
10 |
250 |
10 |
28 |
70 |
47 |
15 |
| DRA10340 |
10 |
340 |
10 |
28 |
70 |
47 |
15 |
| |
15-Ton |
|
| DRA15200 |
15 |
200 |
15 |
34 |
85 |
69 |
15 |
| DRA15400 |
15 |
400 |
15 |
34 |
85 |
69 |
15 |
|
|
20-Ton |
|
| DRA20250 |
20 |
250 |
20 |
38 |
98 |
70 |
16 |
| DRA20500 |
20 |
500 |
20 |
38 |
98 |
70 |
16 |
|
| |

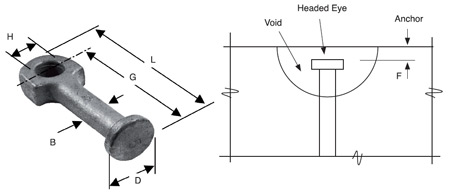

EYE ANCHORS
Used primarily in thin pannels utilizing rebar to extend the
shear cone. |
 |
|
|
|
1-Ton |
|
|
|
|
|
|
| DRO1.3065 |
1.3 |
65 |
10 |
20 |
10 |
54 |
10 |
1 |
|
|
2-Ton |
|
|
|
|
|
|
| DRO2.5090 |
2.5 |
92 |
14 |
27 |
11 |
76 |
13 |
2 |
|
|
4-Ton |
|
|
|
|
|
|
| DRO5090 |
5 |
92 |
20 |
37 |
16 |
68 |
20 |
4 |
| DRO5120 |
5 |
121 |
20 |
37 |
16 |
98 |
20 |
4 |
|
|
8-Ton |
|
|
|
|
|
|
| DRO10115 |
10 |
111 |
29 |
48 |
16 |
87 |
25 |
8 |
| DRO10180 |
10 |
179 |
29 |
48 |
16 |
152 |
25 |
8 |
|
|
16-Ton |
|
|
|
|
|
|
| DRO20250 |
20 |
250 |
38 |
70 |
16 |
203 |
37 |
16 |
|
| |
 |
Note: Headed Eye Anchors require use of bent rebar V through hole to develop tension capacity.
|
| DRO1.3065 |
8 |
254 |
| DRO2.5090 |
10 |
330 |
| DRO5090 |
16 |
406 |
| DRO5120 |
16 |
406 |
| DRO10115 |
22 |
508 |
| DRO10180 |
22 |
508 |
| DRO20250 |
32 |
838 |
|
|
| |

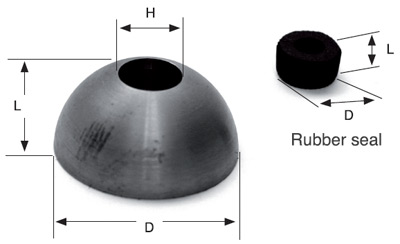

MAGNETIC RECESS FORMERS
This steel body is turned from solid material and fitted with a high-performance magnetic system, providing a high-powered magnet for locating DR Anchors in steel forms. |
 |
|
| KA13M |
1.3 |
60 |
29 |
21 |
M8 |
| KA25M |
2.5 |
73 |
33 |
29 |
M12 |
| KA50M |
5 |
94 |
41 |
38 |
M12 |
| KA75M |
10 |
121 |
54 |
48 |
M12 |
|
|
|
|
|
|
|
|
|
Height (L) |
Diameter (D) |
|
| KA13GM |
Rubber Seal For Magnet |
|
11 |
21 |
|
| KA25GM |
Rubber Seal For Magnet |
|
13 |
30 |
|
| KA50GM |
Rubber Seal For Magnet |
|
14 |
38 |
|
| KA75GM |
Rubber Seal For Magnet |
|
20 |
49 |
|
|
| |
RUBBER RECESS FORMERS
Used to Recess DR Anchors relative to the concrete surface. Each Rubber Recess Former requires one Wing Nut, Plate, and Stud Set to attach it to the form. |
 |
| DRR01 |
1.3 |
59 |
30 |
10 |
| DRR02 |
2.5 |
73 |
37 |
14 |
| DRR04 |
5 |
94 |
48 |
20 |
| DRR08 |
10 |
117 |
59 |
29 |
| DRR16 |
20 |
162 |
59 |
38 |
|
|
| |
STEEL RECESS FORMER
Drilled and tapped to allow bolting directly to the form.
Can be welded to certain types of forms where location is permanent. |
 |
|
|
| |
WING NUT, PLATE & STUD SETS
Used to hold the DR Rubber Recess Formers to the formwork. |
 |
| DRW01A |
1.3 |
M8 |
30 |
| DRW02A |
2.5 |
M10 |
37 |
| DRW04A |
5 |
M10 |
48 |
| DRW08A |
10 |
M10 |
59 |
| DRW16A |
20 |
M10 |
59 |
|
|
| |
DR ANCHOR THREADED PLATES
Can be used with stud or bolt recess former to form. |
|
| DRWP01 |
1.3 |
M8 |
| DRWP02 |
2.5 |
M10 |
| DRWP04 |
5 |
M10 |
| DRWP08 |
10 |
M10 |
|
|
| |
DR ANCHOR PLASTIC CAPS
Protective caps attach to head of DR anchor to prevent debris from filling the recess. |
 |
| DRR01 CAP |
1.3 |
DR-ANCHOR 1 TON PLASTIC CAP |
| DRR02 CAP |
2.5 |
DR-ANCHOR 2 TON PLASTIC CAP |
| DRR04 CAP |
5 |
DR-ANCHOR 4 TON PLASTIC CAP |
| DRR08 CAP |
10 |
DR-ANCHOR 8 TON PLASTIC CAP |
|
|
| |

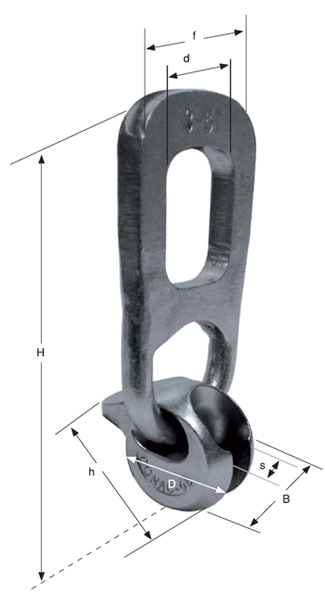

DR-ANCHOR LIFTING UNITS
For use with DR Anchors. Lifting Eye rotates on the anchor to the direction of load. The system Code is stamped on each unit to match with the correct anchor type.
Safe working load of 3:1 safety factor.
|
 |
|
| Lifting Eye 1.3T |
1.3 |
19 |
10 |
52 |
200 |
73 |
32 |
11 |
45 |
72 |
1 |
| Lifting Eye 2.5T |
2.5 |
26 |
14 |
63 |
220 |
91 |
42 |
16 |
58 |
87 |
1.4 |
| Lifting Eye 5T |
5 |
36 |
20 |
82 |
275 |
111 |
57 |
22 |
68 |
116 |
3.21 |
| Lifting Eye 10T |
10 |
47 |
28 |
104 |
390 |
150 |
72 |
29 |
84 |
160 |
8.9 |
| Lifting Eye 20T |
20 |
69 |
39 |
153 |
520 |
210 |
109 |
41 |
115 |
187 |
22 |
|
| |
| See operation instruction for for the CONAC Lifting Eye here. |
 |
| |
