CHANNEL ANCHORS

Channel Anchors for connecting panel to panel or panel to frame. Available w/ NC or Coil Nuts. Foam filled to prevent concrete intrusion.


CHANNEL ANCHORS

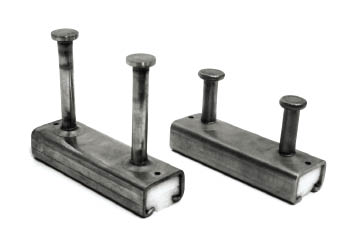

Channel Anchors for connecting panel to panel or panel to frame. Foam filled to prevent concrete intrusion.		 Channel anchors-new.eps
Item Number DESCRIPTION LENGTH NOMINAL (actual in mm) DEPTH NOMINAL (actual in mm) No. OF STUDS (kg) Allow. Load at 35 N/mm2 Suggested Edge Distance
CCA 53 x 33 x 5 Channel Anchor 160 89 2 19 kn 127
CCA 53 x 33 x 5 Channel Anchor 160 133 2 36 kn 191
CCA 53 x 33 x 5 Channel Anchor 210 133 2 36 kn 191

Safe working loads based on 2:1 Safety Factor.
Standard finish is hot-dip galvanized.
Available in Stainless Steel upon request.


Channel Anchor T-Bolt
Bolt Diameter M16 M20
Strength Grade 4.6
Std.		 8.8
Hi Tensile		 4.6
Std.		 8.8
Hi Tensile
Allowed Tension Load 21 43 32 67
Allowed Shear Load 14 29 21 45
Length: 45 mm     Yes Yes
Length: 60 mm Yes Yes Yes Yes
