A-ANCHORS™
|
| |

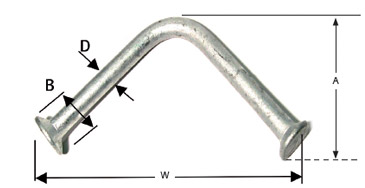

A-ANCHOR™
The A - Anchor Lifting System is versatile and economical, easy to work with in precast concrete plants as well as in the field. The system allows the use of a standard hook or clevis, eliminating the need for specialized lifting hardware. |
 |
|
| 4CA12 |
102 |
1180 |
1814 |
|
| 4CA14 |
102 |
1587 |
5,400 |
229 |
| 5CA14 |
127 |
2494 |
2449 |
254 |
| 5CA18 |
127 |
2721 |
4218 |
254 |
| 6CA14 |
152 |
2948 |
4581 |
318 |
| 6CA18 |
152 |
3401 |
5261 |
318 |
| 8CA18 |
203 |
5896 |
9071 |
394 |
|
|
| 4CA12 |
83 |
130 |
12 |
28 |
102 |
| 4CA14 |
79 |
160 |
14 |
30 |
102 |
| 5CA14 |
95 |
210 |
14 |
30 |
127 |
| 5CA18 |
95 |
221 |
18 |
50 |
127 |
| 6CA14 |
121 |
268 |
14 |
30 |
152 |
| 6CA18 |
121 |
230 |
18 |
50 |
152 |
| 8CA18 |
171 |
311 |
18 |
50 |
203 |
|
|
| |
A-ANCHOR™ RUBBER RECESS FORMERS
The A Anchor Rubber Recess Formers are manufactured in 90° angles. The recess former properly sets the top of the anchor 20 mm below the surface of the concrete. |
 |
| CRRF9014 |
229 |
76 |
83 |
Red |
| CRRF9018 |
229 |
76 |
83 |
Black |
| CRRF9014-4 |
229 |
76 |
100 |
Yellow |
| CRRF9018-4 |
229 |
76 |
100 |
Green |
|
|
| |

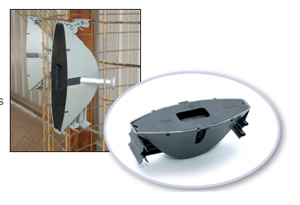

A-ANCHOR™ PLASTIC RECESS FORMERS
A-Anchor single use plastic recess formers attach to mesh or rebar cages.
Patent # 8,024,896 |
 |
| A-PRF-1 |
229 |
76 |
83 |
130 PCS |
| A-PRF-1-18 |
229 |
76 |
83 |
130 PCS |
| A-PRF-3-4 |
279 |
105 |
100 |
60 PCS |
|
|
| |

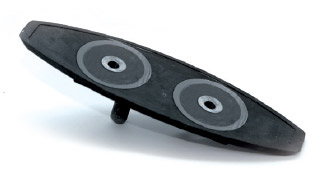

A-ANCHOR™ MAGNETIC RECESS PLATE
The A Anchor Magnetic Recess Plate allows attachment of the Rubber Recess Former to any steel form, eliminating bolting or welding. Threaded holes in magnet (M10) allow easy release of magnet from form. |
 |
|
|
| |
A-ANCHOR™ SETTING PLATE
The A-Anchor Setting Plate is used in various applications to install A-Anchors in a form. |
 |
|
|
| |
A- ANCHOR™ SETTING ROD
The Setting Rod is used to set the
recess former in place by way of a predilled hole in the form. |
 |
|
|
 |
| |
